100PCS Micro2 Auto Blade Fuse Kit For Automotive Aftermarket Car Truck SUV Boat Camper RV ATV UTV Golf Car

100PCS Micro2 Auto Blade Fuse Kit For Automotive Aftermarket Car Truck SUV Boat Camper RV ATV UTV Golf Car

The principle of operating in the car fuse is that when the current passes through the fuse, the fuse will heat up. When the current exceeds the rated current of the fuse, the temperature of the fuse will rise rapidly to reach the fuse temperature, and the fuse will melt to cut off the circuit to prevent the circuit from overheating, burning or damaging other electronic components caused by large currents.MICRO2 fuses’subminiature design allows automakers to pack more circuit protection into less space. Like OEM MICRO2 fuses, these replacement automotive blade fuses have passed performance tests proving their reliability for protecting systems rated for 32 V.

1. Safe and reliable: The fuse has the characteristics of safe and reliable in the protection of the circuit. When the circuit appears overloaded or short circuit, it can melt or disconnect the current in time to effectively prevent the occurrence of electrical accidents.

2. Good high temperature resistance: The high temperature resistance of the fuse is better, and it can withstand the temperature fluctuations within a certain range to ensure that it works properly under high temperature conditions.

3. Fast melting speed: When the circuit fails, the fuse can quickly melt or disconnect current, thereby protecting the circuit and equipment from damage.
4. Easy installation: Convenient installation of fuses can be adopted according to different applications, such as insertion and buckle types.

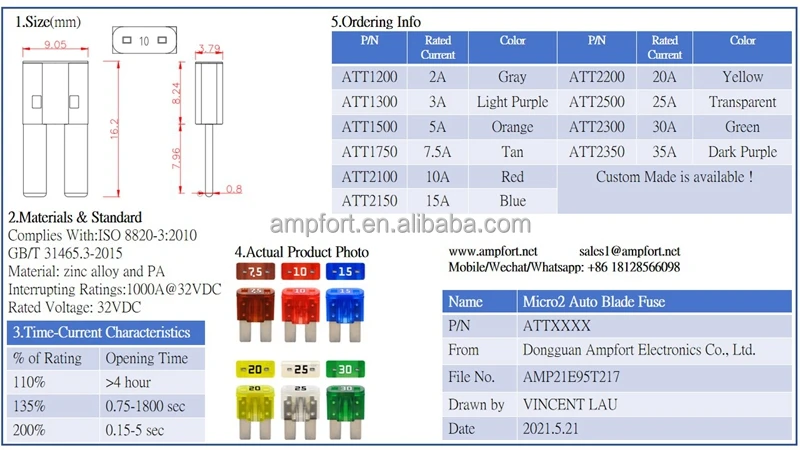

Fast-acting

Available with ampere ratings of 5 A to 30 A

Interrupting ratings of 1 kA at 32 V dc

Operate at up to 85C

Tin-plated terminals

PA 66 housing with UL 94 flammability rating of V-2

Net weight 0.53 g ±5 % per fuse

Comply with SAE 2741-1 and ISO 8820-12:2020

Certified lead-free and RoHS compliant

Color-coding indicates ampere rating

See-through housings make it easier to see when fuses blow High-contrast ampere stamps on housings aid identification

Checkpoints on top make it possible to measure resistance without removing the fuse

The application of fuse in the car is very wide. Their role is to protect the electric wire when the car circuit is not overloaded. The car circuit is the core of the entire automotive system. They are responsible for controlling the functions of all automobiles, including engines, audio, lighting, and so on. If the car's circuit is overloaded, it can easily lead to the burning of the wires, and even cause the vehicle to get angry. Therefore, in the process of automobile manufacturing, installing fuse is a vital step to protect the safety and stability of the entire automotive circuit system.

Car

Trunk

Boat

SUV

Cars and SUVs Trucks Buses Offroad vehicles Watercraft as approved

Default Match(Can be adjusted as customer requirements)

100PCS Auto Blade Fuse

Auto Blade Fuse Kit

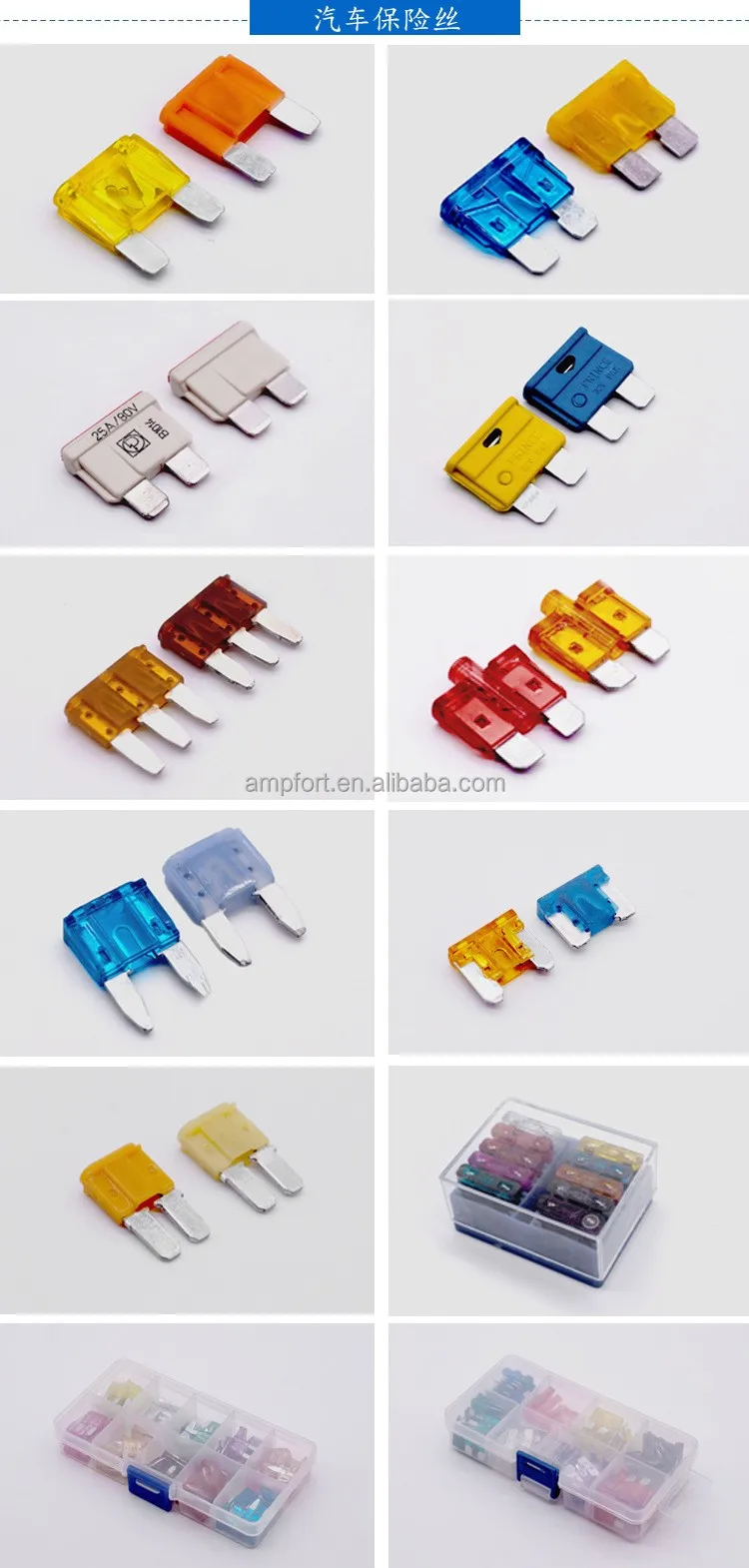

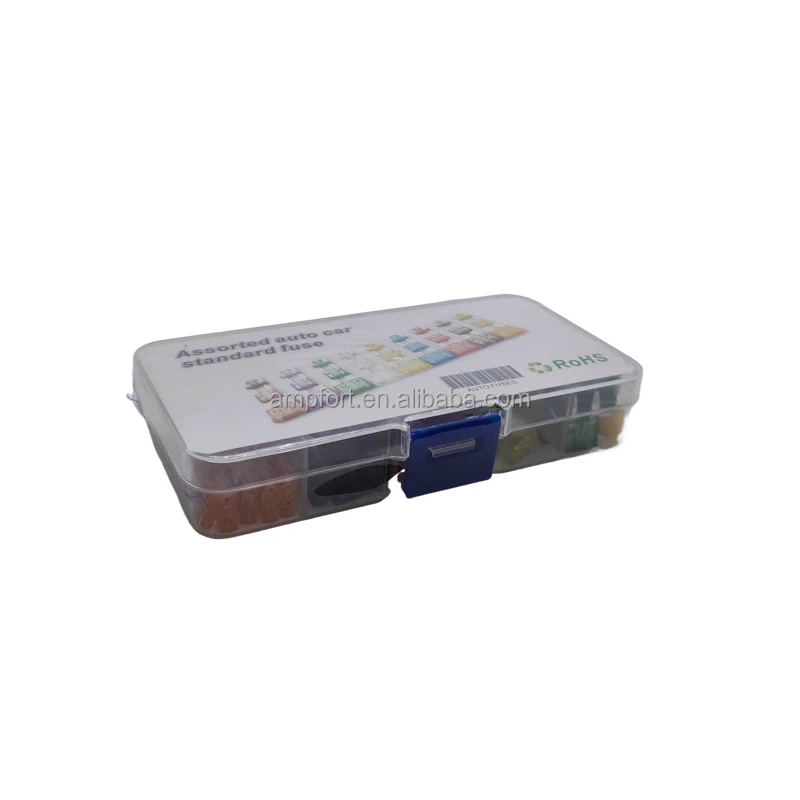

100PCS Micro2 Auto Blade Fuse Kit For Automotive Aftermarket Car Truck SUV Boat Camper RV ATV UTV Golf Car Images
